AXIS Q8685-LE 24V AC/DC
6.456,28 €*
% 8.070,35 €* ( Listenpreis ) (20% gespart)Versandkostenfrei
Produktinformationen "AXIS Q8685-LE 24V AC/DC"

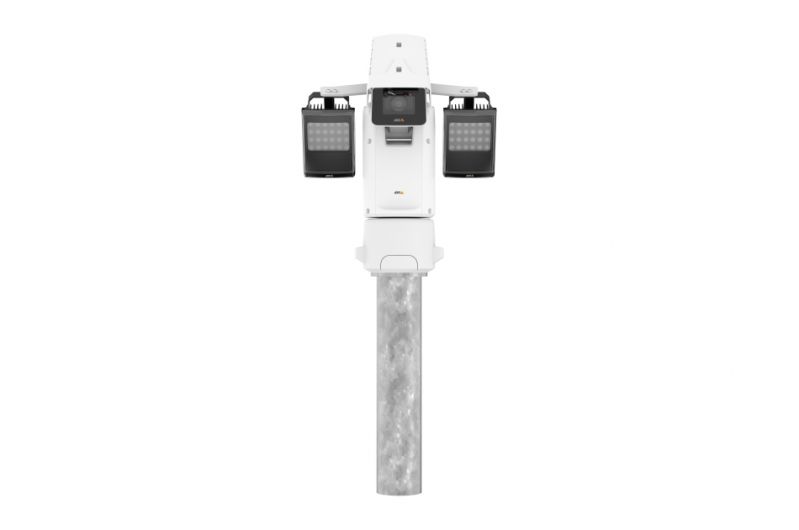

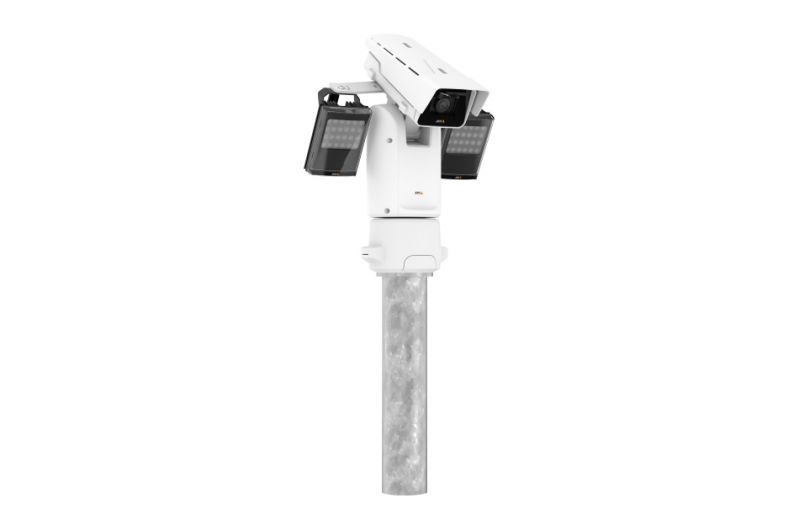

High accuracy outdoor PTZ positioning camera with IR illuminators. HDTV 1080p video, 30x optical zoom, built-in IR pass filter for sharper images in mixed lighting conditions. IR range up to 500m. Integrated long-life silicone wiper for remote maintenance, and integrated SFP slot for long-distance fiber connection. IK10, IP66, NEMA 4X rated and UL listed. Ready for column-mount. Powered by 24 V AC/DC from external power supply (not included)
Eigenschaften
- Netzwerk Positioniersystem für Außenanwendung
- 1/2,8" True Day/Night Netzwerkkamera
- Auflösung 1920x1080, 720p@50fps
- 30x Optical Zoom, 4,3mm - 123mm
- WDR-Forensic Capture, Focus Recall
- SFP-Slot für optionale Glasfaseranbindung
- Highspeed 360° Endlos Pan , -90° bis +45° Tilt
- Hohe Preset Genauigkeit von 0,05°
- Infrarotbeleuchtung, bis 500m Reichweite
- Temperaturbereich: -50 °C bis 55 °C
- Stromversorgung: 24 VAC, Scheibenwischer
- Schutzklasse IP66 und NEMA 4X
Anmelden
Downloads AXIS Q8685-LE 24V AC/DC
Technische Daten AXIS Q8685-LE 24V AC/DC
Camera
| Image sensor | CMOS |
| Image sensor size | 1/2.8 |
| Lightfinder | - |
| Wide dynamic range | Forensic Capture |
| Min illumination/ light sensitivity (Color) | 0.2 lux |
| Min illumination/ light sensitivity (B/W) | 0.01 lux |
General
| Built-in IR | Yes |
| OptimizedIR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | -50 to 55 °C |
| Outdoor Ready | Yes |
| Vandal rating | – |
| IP rating | IP66 |
| Designed for repaint | Yes |
Analytics
| Autotracking version | Autotracking 1 |
| Orientation aid | – |
Video
| Max video resolution | 1920x1080 |
| Max frames per second | 50/60 |
| Day and Night functionality | Yes |
| Electronic image stabilization | Yes |
Lens
| Focal length | 4.3 - 129 mm |
| Horizontal field of view | 65.6 - 2 ° |
| Vertical field of view | 39 - 1.2 ° |
Pan, Tilt, Zoom
| Pan range | 360 endless |
| Tilt range | -90 to 45, -45 to 90 |
| Guard tour | preset position tour |
| Optical zoom | 30 |
| Digital zoom | 12 |
Compression
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | – |
| Motion JPEG | Yes |
Audio
| Audio Support | – |
| Built-in microphone | – |
System Integration
| Audio detection | – |
| Active tampering | – |
| Alarm inputs/outputs | 4 |
Network
| PoE Class | – |
Security
| Signed firmware | – |
| Secure boot | – |
| TPM | – |
