AXIS Q8642-E 60MM 30 FPS 24V
11.667,52 €*
% 14.584,40 €* ( Listenpreis ) (20% gespart)Versandkostenfrei
Produktinformationen "AXIS Q8642-E 60MM 30 FPS 24V"

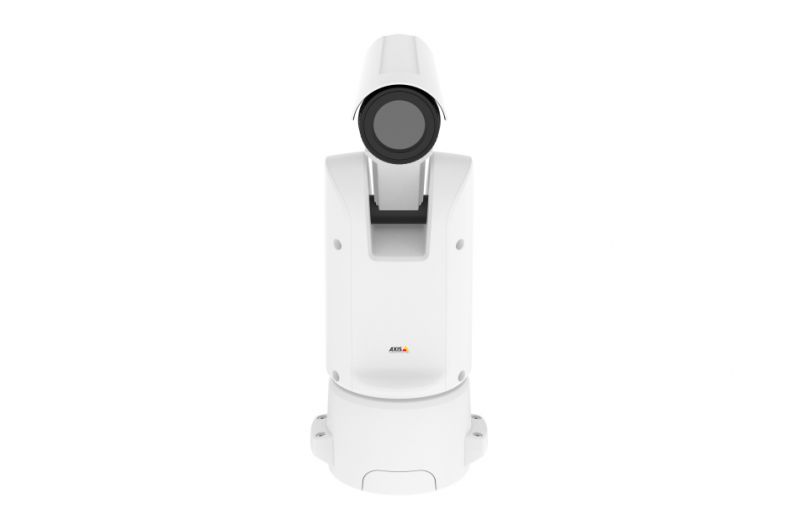

High accuracy outdoor PT positioning thermal camera. 640x480 resolution, 30 fps and 60 mm lens with 10°angle of view. It supports Electronic Image Stabilization, Zipstream, ONVIF, H.264 and local storage. It includes Video motion detection, shock detection and support for AXIS Camera Application Platform enabling installation of AXIS Perimeter Defender and third-party applications. Responsive absolute positioning with high-speed and ultra-smooth pan and tilt capabilities. Integrated SFP slot for long-distance fiber connection. IP66, NEMA 4X rated and UL listed. Ready for column-mount. Powered by 24 V AC/DC. This product is subject to export control regulations. You should always consult and comply with the regulations of the appropriate local export control authorities.
Eigenschaften
- Netzwerk Positioniersystem für Außenanwendung
- Auflösung Thermal 640x480, 30fps
- 60mm Brennweite, 10° HFoV
- Pan: 360° endlos, 0,05°–120°/s
- Tilt: –90 bis +45°, 0,05°–60°/s
- Hohe Preset Genauigkeit von 0,01° @ 0,05°/s
- H.264 mit Axis Zipstream Technology
- RJ45 Ethernet und SFP Slot (ohne Modul)
- Temperaturbereich: -40 °C bis 65 °C
- Electronic Image Stabilization (EIS)
- Stromversorgung: 24V AC/DC
- Schutzklasse IP66 und NEMA 4X
Anmelden
Downloads AXIS Q8642-E 60MM 30 FPS 24V
Technische Daten AXIS Q8642-E 60MM 30 FPS 24V
Camera
| Image sensor | Uncooled microbolometer |
| Image sensor size | 640x480 |
| Lightfinder | - |
| Wide dynamic range | – |
| Min illumination/ light sensitivity (Color) | – |
| Min illumination/ light sensitivity (B/W) | – |
General
| Built-in IR | – |
| OptimizedIR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | -40 to 60 °C |
| Outdoor Ready | Yes |
| Vandal rating | – |
| IP rating | IP66 |
| Designed for repaint | Yes |
Analytics
| Autotracking version | – |
| Orientation aid | – |
Video
| Max video resolution | 800x600 |
| Max frames per second * | 30 / 8.3 |
| Day and Night functionality | – |
| Electronic image stabilization | Yes |
Lens
| Focal length | 60 mm |
| Horizontal field of view | 10 ° |
| Vertical field of view | 7.7 ° |
Pan, Tilt, Zoom
| Pan range | 360 endless |
| Tilt range | -90 to 45 |
| Guard tour | preset position tour |
| Optical zoom | - |
| Digital zoom | – |
Compression
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | – |
| Motion JPEG | Yes |
Audio
| Audio Support | – |
| Built-in microphone | – |
System Integration
| Audio detection | – |
| Active tampering | – |
| Alarm inputs/outputs | 4 |
Network
| PoE Class | – |
Security
| Signed firmware | Yes |
| Secure boot | – |
| TPM | – |
